VCGR160404HPK313

Voor uitgebeide specificaties en het configureren van uw tool, download hier NOVO.

Meer foto's

Export Control Number - Europe	EAR99

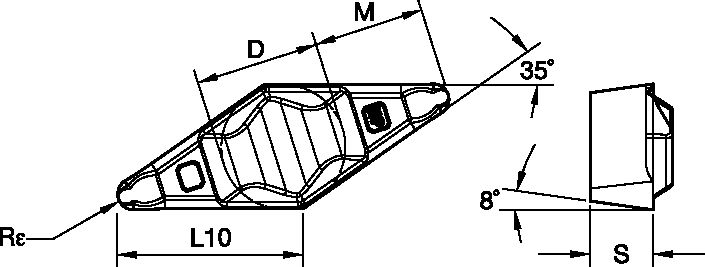

[ALPHAN] Clearance Angle Major	8
[ALPHANM] Clearance Ang Minor	8
[D] Insert IC Size	9.52
[L10] Ins Cut Edge Length	16.61
[REPSILON] Corner Radius	0.0156
[REPSILON] Corner Radius MM	0.397
[S] Insert Thickness	4.762
Chipbreaker	1-Chipbreaker On One Side
Chipbreaker Mfgr's Designation	HP
Coating	Uncoated
Cutting Tool Material	Carbide
Engineering Insert Geometry	GR_HP
Hand of Tool	N - Neutral
Insert Hand	N - Neutral
Insert Mounting	5-With Notch Clamping
Insert Num of Cutting Edges	2
Insert Shape	V-Diamond/Rhombic 35
Insert Shape - Marcom Calc	Diamond/Rhombic 35
Country of Manufacturing	US
Zolltariffnummer	8209002
