VCGR160416KC5010

Voor uitgebeide specificaties en het configureren van uw tool, download hier NOVO.

Meer foto's

Export Control Number - Europe	EAR99

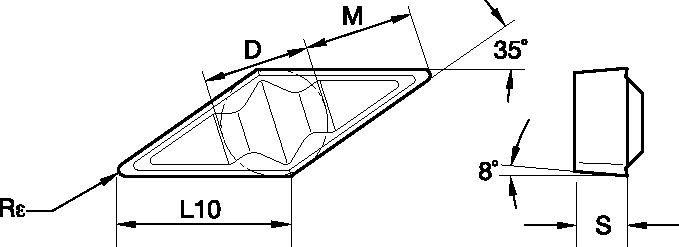

[ALPHAN] Clearance Angle Major	8
[ALPHANM] Clearance Ang Minor	8
[D] Insert IC Size	9.525
[L10] Ins Cut Edge Length	16.606
[M] Insert Gage Dimens.	7.383
[M] Insert Gage Dimension	0.2907
[REPSILON] Corner Radius	0.0625
[REPSILON] Corner Radius MM	1.6
[S] Insert Thickness	4.763
Chipbreaker	1-Chipbreaker On One Side
Coating	TiAlN
Cutting Tool Material	Carbide
Engineering Insert Geometry	GR
Hand of Tool	N - Neutral
Insert Hand	N - Neutral
Insert Mounting	5-With Notch Clamping
Insert Num of Cutting Edges	2
Insert Shape	V-Diamond/Rhombic 35
Insert Shape - Marcom Calc	Diamond/Rhombic 35
Country of Manufacturing	TW
Zolltariffnummer	8209002

Bezorgd door DHL

Verzendkosten € 9,50

Franco verzending vanaf € 275,- (ex. BTW)
