KNUX150410R25KCU10

Voor uitgebeide specificaties en het configureren van uw tool, download hier NOVO.

Meer foto's

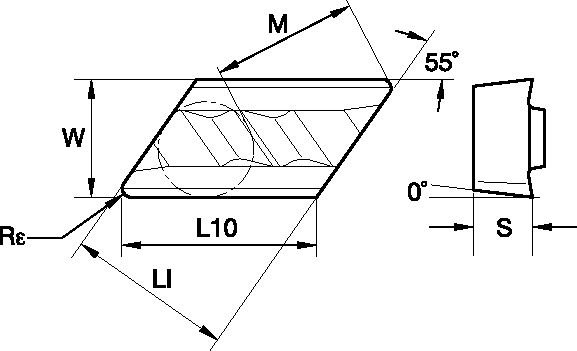

Export Control Number - Europe	EAR99
[ALPHAN] Clearance Angle Major	0
[ALPHANM] Clearance Ang Minor	6
[L10] Ins Cut Edge Length	15.442
[LI] Insert Length	12.7
[M] Insert Gage Dimens.	12.739
[M] Insert Gage Dimension	0.5016
[REPSILON] Corner Radius	0.0394
[REPSILON] Corner Radius MM	1
[S] Insert Thickness	4.763
[W] Insert Width	9.525
Chipbreaker	1-Chipbreaker On One Side
Chipbreaker Mfgr's Designation	25
Coating	AlTiN
Cutting Tool Material	Carbide
Engineering Insert Geometry	25
Hand of Tool	R - Right
Insert Hand	R - Right
Insert Mounting	5-With Notch Clamping
Insert Num of Cutting Edges	2
Insert Shape	N/K-Parallelogram 55
Insert Shape - Marcom Calc	Parallelogram 55
Country of Manufacturing	CN
Zolltariffnummer	8209002
