KCGR110304R08K68

Voor uitgebeide specificaties en het configureren van uw tool, download hier NOVO.

Meer foto's

Export Control Number - Europe	EAR99

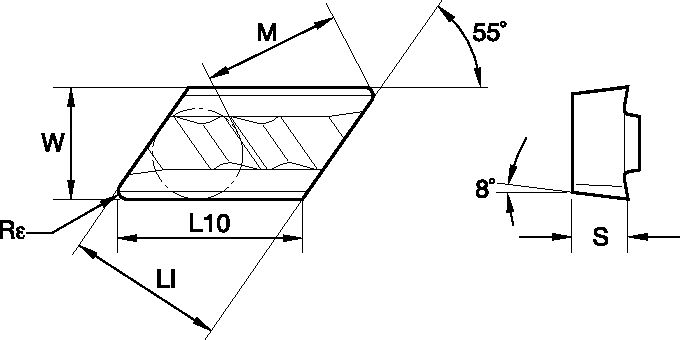

[ALPHAN] Clearance Angle Major	8
[ALPHANM] Clearance Ang Minor	7
[L10] Ins Cut Edge Length	11.597
[LI] Insert Length	9.525
[M] Insert Gage Dimens.	9.103
[M] Insert Gage Dimension	0.3584
[REPSILON] Corner Radius	0.0156
[REPSILON] Corner Radius MM	0.4
[S] Insert Thickness	3.175
[W] Insert Width	6.35
Chipbreaker	1-Chipbreaker On One Side
Chipbreaker Mfgr's Designation	8
Coating	Uncoated
Cutting Tool Material	Carbide
Engineering Insert Geometry	GR_08
Hand of Tool	R - Right
Insert Hand	R - Right
Insert Mounting	5-With Notch Clamping
Insert Num of Cutting Edges	2
Insert Shape	N/K-Parallelogram 55
Insert Shape - Marcom Calc	Parallelogram 55
Country of Manufacturing	US
Zolltariffnummer	8209002
