DCGR150408FPKCM25

Voor uitgebeide specificaties en het configureren van uw tool, download hier NOVO.

Meer foto's

Export Control Number - Europe	EAR99

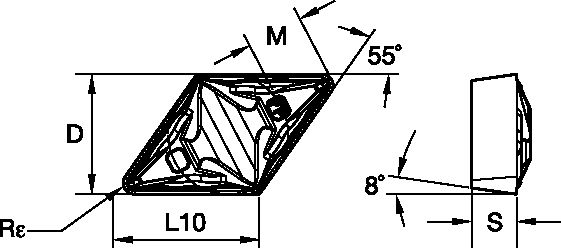

[ALPHAN] Clearance Angle Major	8
[ALPHANM] Clearance Ang Minor	8
[D] Insert IC Size	12.7
[L10] Ins Cut Edge Length	15.5
[M] Insert Gage Dimens.	6.477
[M] Insert Gage Dimension	0.255
[REPSILON] Corner Radius	0.0312
[REPSILON] Corner Radius MM	0.794
[S] Insert Thickness	4.762
Chipbreaker	1-Chipbreaker On One Side
Chipbreaker Mfgr's Designation	FP
Coating	TiN
Cutting Tool Material	Carbide
Engineering Insert Geometry	GR_FP
Hand of Tool	N - Neutral
Insert Hand	N - Neutral
Insert Mounting	5-With Notch Clamping
Insert Num of Cutting Edges	2
Insert Shape	D-Diamond/Rhombic 55
Insert Shape - Marcom Calc	Diamond/Rhombic 55
Country of Manufacturing	US
Zolltariffnummer	8209002
